Point of Success Video Security System

See point of sale transaction information in security video recordings

Items added to an order, items removed from an order, totals, tax and more are all shown in white text overlaid on a video security camera image.

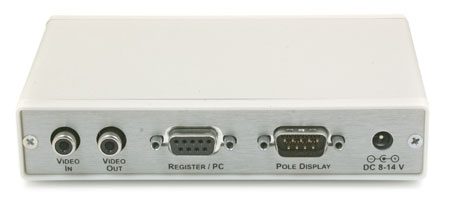

PostMark Video Overlay



At the core of this security enhancement is the PostMark Video Overlay box. This technology works with most video surveillance systems and has been adapted specifically for use with Point of Success POS software.

  • Receives order information from a Point of Success workstation through a serial port configured for use with a pole display
  • Security camera video enters the box through a composite video jack
  • Order information is overlaid on the camera video
  • Combined image exits the box through a composite video jack
  • Connect this video signal to your DVR or other compatible video equipment
  • Each order item is displayed on one line of text up to 18 characters in length
  • Up to 11 lines of order information can be displayed simultaneously

If the workstation also uses a pole display, a pass-through serial port provides data to drive the pole display.

Security System Requirements

The Point of Success Video Security System works with surveillance systems meeting these requirements:

  • Cameras must output a composite video signal
  • Each Point of Success workstation to be monitored requires a separate PostMark box for video overlay and a serial port on the computer to send transaction information to the box
  • Your security system controller (usually a DVR) must accept a composite video input
  • Each video image with overlaid order information can be viewed just like any other camera in the system, including on a dedicated video display in the restaurant and remotely monitored over the internet if your security system supports it

One interface box and one security camera are required for each order entry workstation to be monitored.
